semi-automatic high speed thin blade slitter scorer machine for corrugated paper cardboard for carton box making

FOB Reference Price:Get Latest Price
$4,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SBF2200
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Film, Pallet
Packaging Material:
Wood
Type:
Packaging Line
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
380V
Power:
3-4kw
Place of Origin:
China
Brand Name:
HIGEE
Dimension(L*W*H):
3050X1400X1350
Weight:
it depends
Certification:
CE
Product name:
semi-automatic high speed thin blade slitter scorer machine
Breadth:
2200mm
Maximum feeding size:
2100mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month Slitter Scorer Machine For Corrugated Paper
Packaging & Delivery
Packaging Details
Seaworthy packing suitable for long distance sea transportation pallet packing+ Film covered.
Port
Shanghai



semi-automatic high speed thin blade slitter scorer machine for corrugated paper

Product Description
Product Information

Application:

Semi-Automatic cardboard creasing and slitting machine adopts manual feeding for straight cardboard, and automatic-feeding for cross paperboard. It has the features of easy, stable adjustment, convenient repair and maintenance.

This machine is used to cut the hard cardboard, grey paperboard bind in the book cover. It can cut the big size cardboard into required size, and into many slots at one time, so it has high working efficiency. This machine is necessary equipment in book binding.



Model(Unit:mm)

SBF2200

SBF2500

SBF2800

Breadth

2200

2500

2800

Maximum feeding size

2100

2400

2700

Minimum separating size

120

120

120

Maximum blade diameter

φ260

φ260

φ260

Minimum blade diameter

φ225

φ225

φ225

Motor power rate

.3KW

4KW

4KW

Trace pressing wheels(set)

4

6

6

Paper separating lades(piece)

3

4

4

Weight(kg)

1500

1800

2000

Overall dimensions L*W*H

3050*1400*1350

3350*1400*1350

3550*1400*1350

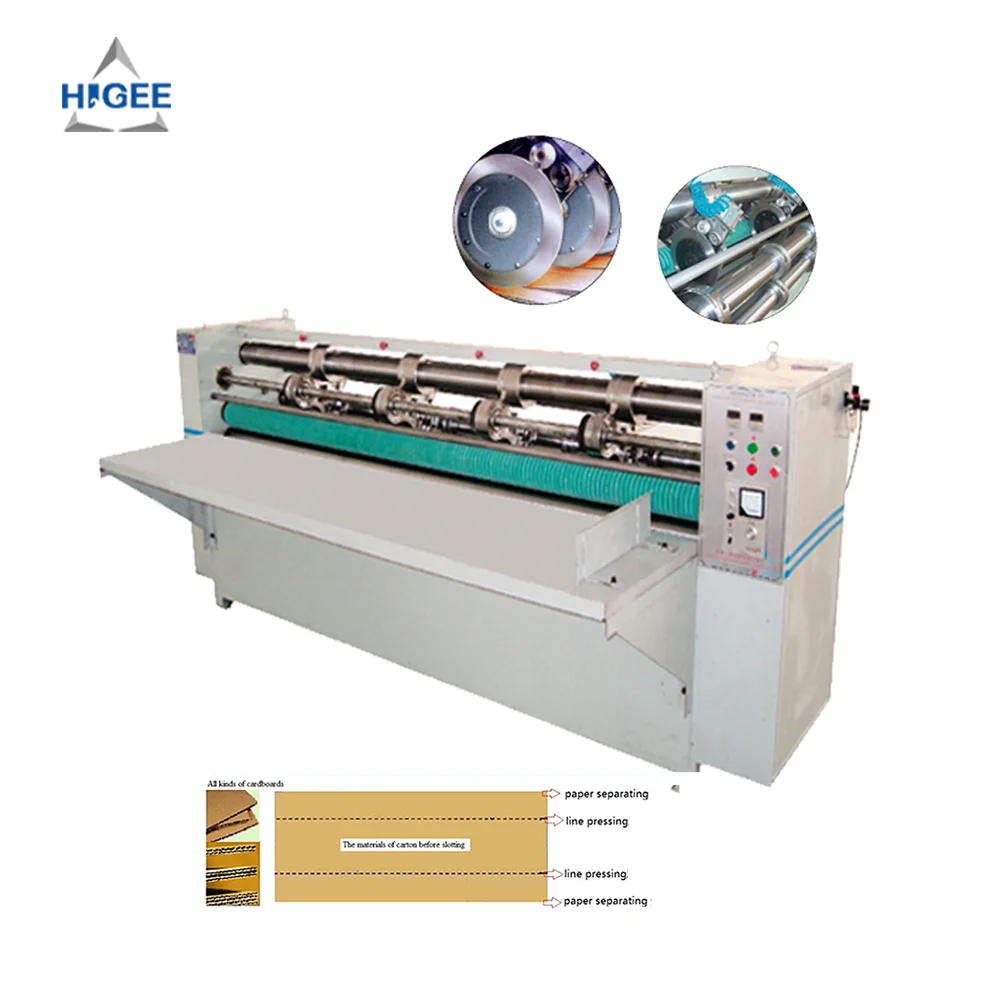

Product Display
The pictures are for reference only,more products please click HERE.
Main category

Company Information



More About Us



Packaging & Shipping



Our Services





1 We provide solution and proposal for whole new factory, with a comprehensive plant design, to meet the requirement of the customers and the target market .


2 After-Sales Service.
1) Upon request from the customers, our service personnel is available to provide the service at the workshop of the customer overseas, including service and support of installation, testing and training etc.


2) Warrantee: 1 year after delivery. Tear and wear parts excluding. Spare parts will be delivered with machine.


3) With 20 years experience, our company will reply to your after-sales service within 24 hours.
